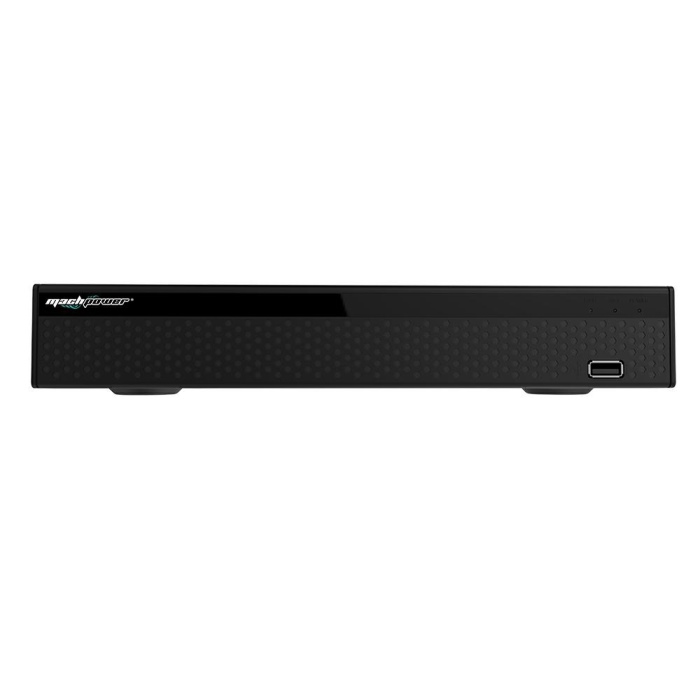

Mach PowerMach Power SISTEMA DI SORVEGLIANZA XHVR 8 CANALI 5IN1 (VS-XHVR8C5MN-306)
Mach Power SISTEMA DI SORVEGLIANZA XHVR 8 CANALI 5IN1 (VS-XHVR8C5MN-306)
TR052784
Registrati o accedi per visualizzare i prezzi a te riservati


Stampa scheda  |  Invia ad un amico



Dettagli

System
Main Processor MC6630
Operating System Embedded LINUX
Video
Input  Normal Mode= Analog= 8 x (TVI/AHD= 5M@12fps; AHD/TVI/CVI= 4M@15fps; AHD/TVI= 3M@18fps;
 AHD/TVI/CVI= 1080P/720P; Analog= 960H) Analog+Network= 2 x Analog(5MP)+7 x network(MAX 5MP),
 4 x Analog(5MP)+5 x network(MAX 5MP), 6 x Analog(5MP)+ 3 x network(MAX 5MP)
 Network= 16 x 5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)



Input 8CH BNC
Signal Type Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output 1 HD,1 VGA, CVBS
Audio
Input 2 Channel, RCA
Two-way Audio No
Output 1 Channel, RCA
Alarm
Sensor Input 4 CH
Output 1 CH
Motion Detection 8 Channel(max 16 Channel in pure network mode
Trigger Events Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm Send Image to The Designated E-mail
PTZ
Interface RS485
Protocol Pelco-D, Pelco-P
Baud Rate 110~921600
Address 0~255
Display
VGA 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz
HD Output 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P /60Hz, 1280 × 1024 /60Hz,
1280 × 720 /60Hz,1024 × 768 /60Hz
Display Split 16 CH/ 9 CH/ 8 CH/ 4 CH/ 1 CH
Privacy Masking 3 Rectangular Zones (Each camera)
OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression H.265/H.265+/H.264/H.264+
Audio Compression G.711u
Resolution Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480)
Video Quality worst/worse/ordinary/well/best
Record Rate Analog: PAL:Half 1080P(960x1080 16 x 15fps),720P(1280×720 16 x 15fps),
960H(960×576 16 x 22fps) NTSC:Half 1080P(960x1080 16 x 15fps),
720P(1280×720 16 x 15fps), 960H(960×480 16 x 22fps)
Pure IP(H.265):
PAL :4k@8x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps,
1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps
NTSC:4k@8x30fps,  5MP@12x30fps,4MP@16x30fps,  3MP@16x30fps,
1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps
Record Mode ManualTimerMotion Detection
Playback & Backup
Decode Capability 2CH 1080P@30fps
Sync Playback Pure Analog= 4CH 960H@25fps, 4CH 720P@15fps, 4CH 1080N@15fps, 4CH 5M_LITE@6fps,
Mixture mode: Anolog(4 x 1080N@15fps, 4 x 1080P15fps, 4 x 720P@15fps,
4 x 960H@22fps); IPC(4 x 1080N@30fps, 2 x 2560 x 1440@25fps,
1 x 2560 x 1920@30fps+1 x 1080N@30fps, 1 x 1080P@30fps+1 x 5M@30fps,
1 x 3840 x 2160@30fps)
Pure Network: 1CH 4K@30fps, 1CH 5MP@30fps, 2CH 4MP@30fps,
3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
Remote Playback 4 Channel / 1 Channel
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen
Smart Phone Playback 4 Channel
Backup Mode USB Device(with fomat FAT 32 )/Network/FTP
Network
Interface 1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP,
RTSP, RTCP
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS,
SMART-EYES, ZEBEYE
Web Browser IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software Support Windows 7/ Windows 8/Windows 10
Extra Stream CIF(1~15fps)
Smart Phone iPhone, ipad, Android ,Android pad
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General
Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian,
Romanian, korean, Dutch, Greek
UTC Control Yes
USB Interface 2 USB 2.0 Interfaces
Power consumption DC 12V 6W (Without Hard Disk)
Working Environment -10~55°C/10~90%
Dimension (W×D×H) 260(W) x 215(D) x 43(H)
Weight (kg) 2.0 (Senza HDD)

   Scheda tecnica   Guarda Anche   Categorie


Ulteriori informazioni

Codice prodotto TR052784
Marca Mach power
Dimensione 8 canali
Sottocategorie XVR
