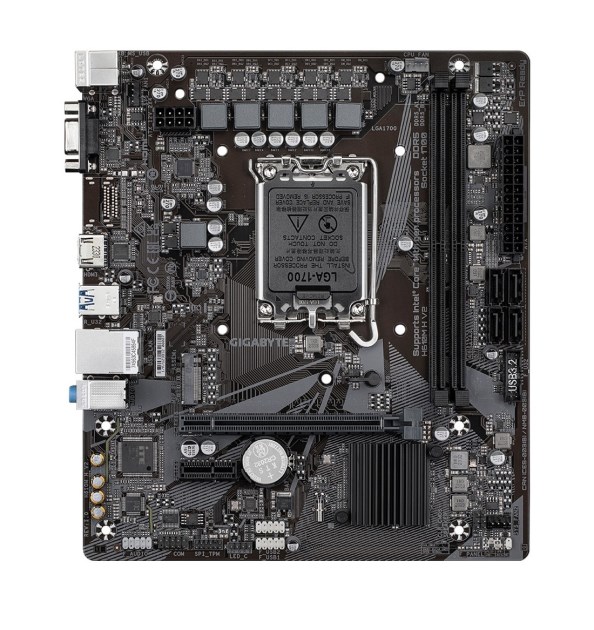

Gigabyte SCHEDA MADRE H610M H V2 SK 1700 TR062703 Registrati o accedi per visualizzare i prezzi a te riservati Hai aggiunto questo prodotto al carrello: Gigabyte SCHEDA MADRE H610M H V2 SK 1700 continua   vedi carrello Stampa scheda  |  Invia ad un amico Scheda madre Gigabyte H610M H V2 DDR4 (rev. 1.0) - Supporto processori Intel® Socket 1700 12th e 13th e 14th Gen Intel® Core Pentium® Gold and Celeron® - Ram 2x DDR4 - Hdmi, D-Sub (Vga) - RAID 0,1,5,10 - 8x Usb3.2 / 6x Usb2.0 - GLan - Audio HD - Micro-ATX Dettagli Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold PC micro ATX Intel H610 Express Realtek ALC897 7.1 canali DDR5-SDRAM 2 DIMM RAM massima supportata: 96 GB HDD & SSD M.2, SATA III numero di dispositivi di archivio supportati: 5 Intel HD Graphics Tipo BIOS: UEFI AMI 128 Mbit Versione ACPI: 5.0 Jumper di azzeramento CMOS Tasto di azzeramento CMOS Gigabit Ethernet   CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information. Chipset Intel® H610 Express Chipset Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps) Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors USB Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm

Scheda tecnica    Guarda Anche    Categorie   Ulteriori informazioni Codice prodotto TR062703 EAN 4719331859985 Marca Gigabyte Socket CPU LGA1700 Famiglia processore Intel Dimensione MicroATX Condizione Nuovo Prodotto Descrizione Gigabyte SCHEDA MADRE B760M DS3H DDR4 SK 1700 TR056271 Scheda madre Gigabyte B760M DS3H DDR4 (rev. 1.0) - Supporto processori Intel® Socket 1700 12th e 13th Gen Intel® Core Pentium® Gold and Celeron® - Ram 4x DDR4 - Hdmi, DisplayPort - RAID 0,1,5,10 - 8x Usb3.2 / 6x Usb2.0 - GLan - Audio HD - Micro-ATX IVA INCLUSA Gigabyte SCHEDA MADRE GA-H610M K DDR4 (1.0) SK 1700 TR059584 Scheda madre Gigabyte H610M K DDR4 - Supporto processori Intel® Socket 1700 12/13/14th Gen Intel® Core, Pentium® Gold and Celeron® - Ram 2x DDR4 - Hdmi - 2x Usb3.2 / 6x Usb2.0 - GLan - Audio HD - Micro-ATX IVA INCLUSA Gigabyte SCHEDA MADRE B760M H DDR4 SK 1700 TR062704 Scheda madre Gigabyte B760M H DDR4 (rev. 1.0) - Supporto processori Intel® Socket 1700 12th e 13th e 14th Gen Intel® Core Pentium® Gold and Celeron® - Ram 2x DDR4 - Hdmi, D-Sub (Vga) - RAID 0,1,5,10 - 8x Usb3.2 / 6x Usb2.0 - GLan - Audio HD - Micro-ATX IVA INCLUSA

Foto, e schede tecniche sono a cura della casa produttrice e sono espresse a titolo indicativo.
I prezzi possono subire variazioni senza preavviso e sono da intendersi IVA inclusa.
