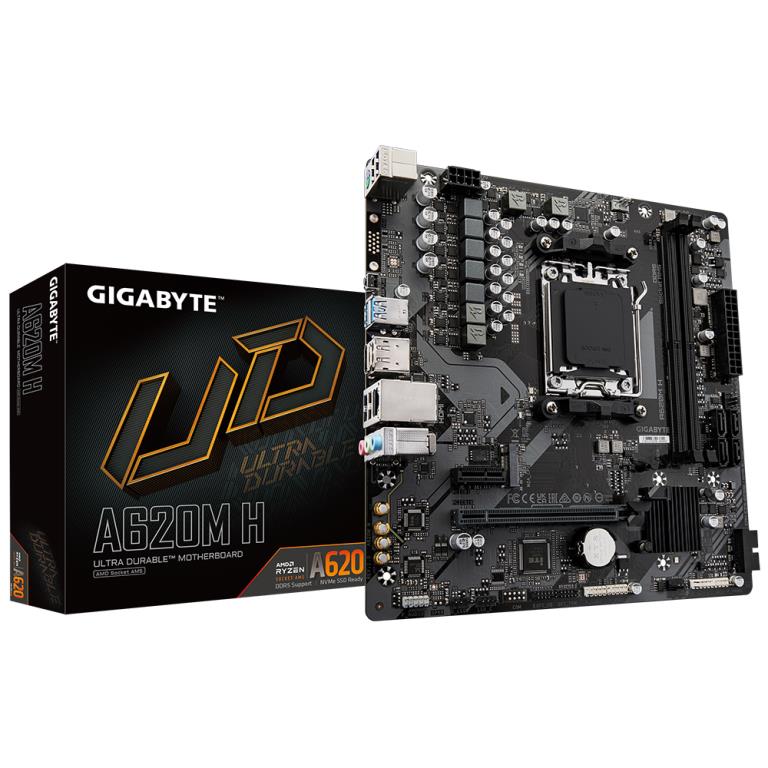

GigabyteGigabyte SCHEDA MADRE A620M H (REV. 1.0) SK AM5
Gigabyte SCHEDA MADRE A620M H (REV. 1.0) SK AM5
TR058476
Registrati o accedi per visualizzare i prezzi a te riservati


Stampa scheda  |  Invia ad un amico



Scheda Madre Gigabyte A620M H (rev. 1.0) - Socket AM5 - Supporta i processori AMD Ryzen 7 7th Gen - 2x DDR5 - RAID 0, 1,10 - DisplayPort, Hdmi - USB 3.2/2.0 - Gigabit LAN - Audio HD 7.1 - PCI Express x16 - mATX

Dettagli

AMD Socket AM5: supporta i processori AMD Ryzen™ serie 7000
Prestazioni senza pari: Soluzione VRM digitale a 5+2+2 fasi
DDR5 a doppio canale: 2 DIMM SMD con supporto per moduli di memoria AMD EXPO™ e Intel® XMP
Archiviazione SuperSpeed: connettore PCIe 4.0 x4 M.2
EZ-Latch: slot PCIe x16 con design a rilascio rapido
Reti veloci: LAN GbE
Connettività estesa: DP, HDMI
Smart Fan 6: dispone di più sensori di temperatura, connettori della ventola ibridi con FAN STOP
Q-Flash Plus: aggiorna il BIOS senza installare CPU, memoria e scheda grafica





  • CPU
    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD A620
  • Memory
    1. Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
    2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support for native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)

    Support for up to 3 displays at the same time
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
    Chipset:
    1. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    CPU:
    1. 2 x USB 3.2 Gen 1 ports on the back panel
    2. 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 1 x M.2 Socket 3 connector
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    14. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 4 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x Q-Flash Plus button
    4. 2 x USB 3.2 Gen 1 ports
    5. 1 x DisplayPort
    6. 1 x HDMI port
    7. 1 x RJ-45 port
    8. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 23.0cm x 22.5cm

   Scheda tecnica   Guarda Anche   Categorie


Ulteriori informazioni

Codice prodotto TR058476
EAN 4719331855512
Marca Gigabyte
Funzioni Speciali VR Ready
Socket CPU AM5
Famiglia processore Amd
Dimensione MicroATX
Condizione Nuovo
